INTRODUCTION

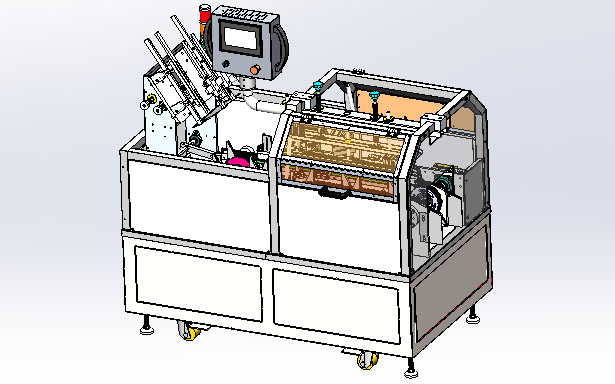

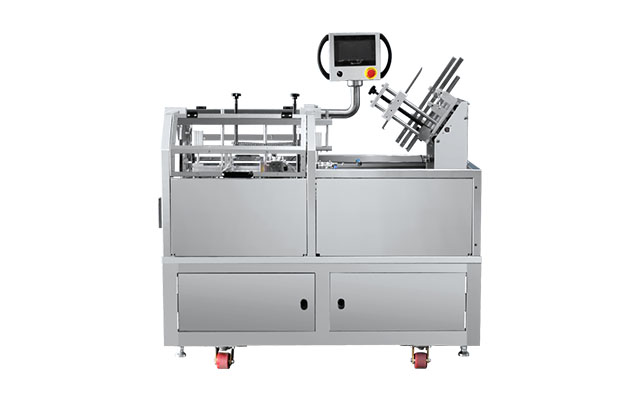

LY200-2-460 BOTTOM LOCKING CARTON OPENING MACHINE
APPLICABLE FIELDS

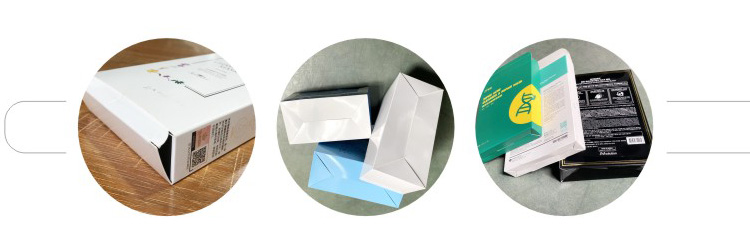

It is a bottom locking box opening machine mainly suitable for products such as food, electronic products, toys, stationery, auto parts, cosmetics, hardware, daily commodities, etc.
MAIN TECHNICAL PARAMETERS
- Model: LY200-2 Insert Box type;
- Production speed: 15-40 box/min;
- Suitable for box size: L.130-200 W.60-180 H.15-50-70 mm;
- Paper requirements: 250-400g;

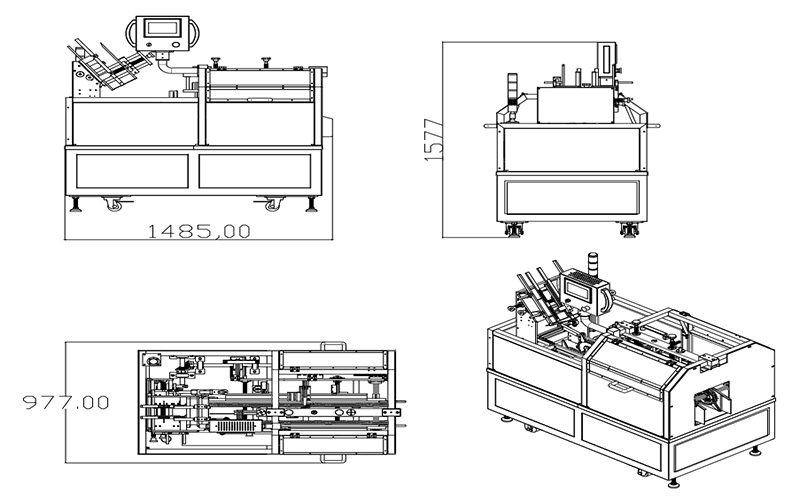

- Equipment dimensions: L.1485 W.977 H.1577 mm;
- Machine weight: ≈850 KG;
- Power supply: AC220V 50HZ-60HZ;
- Total power: 0.75KW;
- Air consumption: 15-80L/min(0.5-0.7Mpa);
- Model: LY200-2 Sticky Box type;
- Production speed: 15-40 box/min;
- Suitable for box size: L.130-200 W.60-180 H.15-50-70 mm;
- Paper requirements: 250-400g;
- Equipment dimensions: L.1485 W.977 H.1577 mm;
- Machine weight: ≈880 KG;
- Power supply: AC220V 50HZ-60HZ;
- Total power: 4.5KW;
- Air consumption: 15-80L/min(0.5-0.7Mpa);

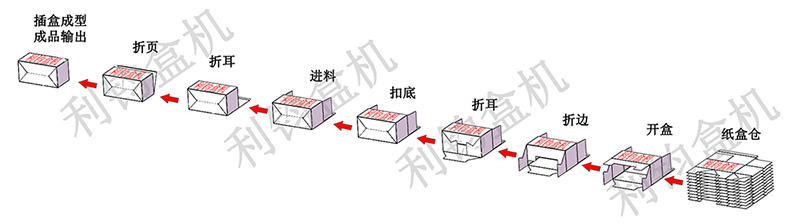

Packaging process
FEATURES
The equipment is one of the machines for mass production independently researched and developed by our company. Integrating box opening, folding and locking, it has such features as compact and reasonable design, simple operation and convenient maintenance and servicing.
Within the specified range of the same equipment, the dial scale can be quickly adjusted to achieve the use of multiple specifications.
The parts that contact the product are made of SUS304 stainless steel.
High degree of automation: PLC programmable control system, man-machine interface displaying box opening speed, quantity, automatic alarm for lack of cartons, no box opening if not in place, fault reasons and other parameters.
The driving and friction parts strictly follow the standard, with less wear and less replacement of parts at later periods.
It can be equipped with the hot melt glue machine according to customer requirements. Box sealing can be achieved by hot melt glue spraying or mechanical glue spreading.

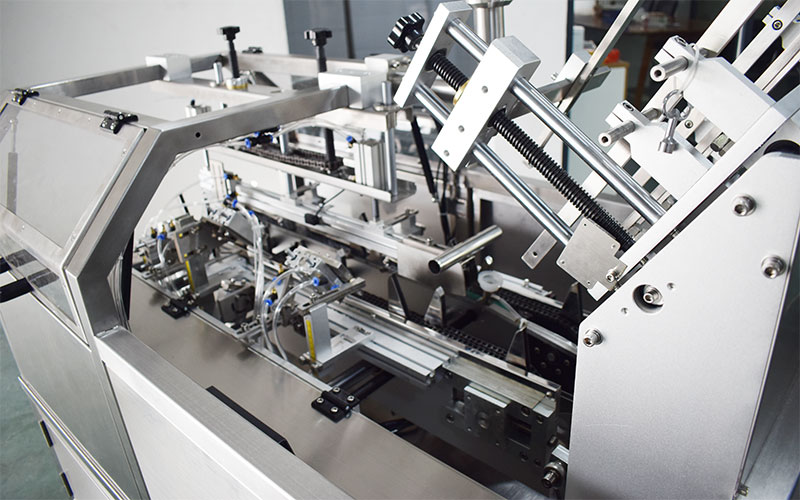

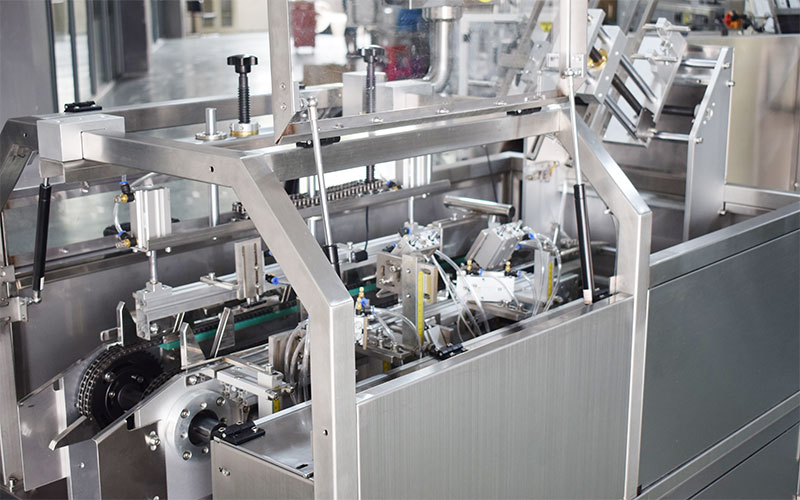

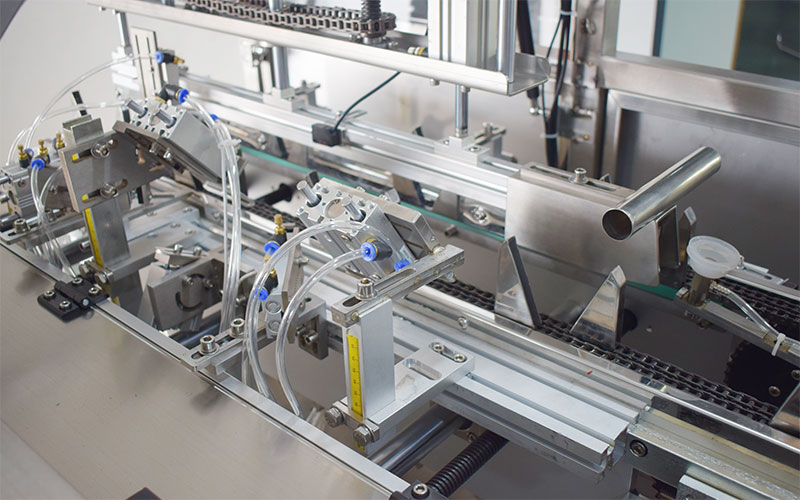

Part of the machine
