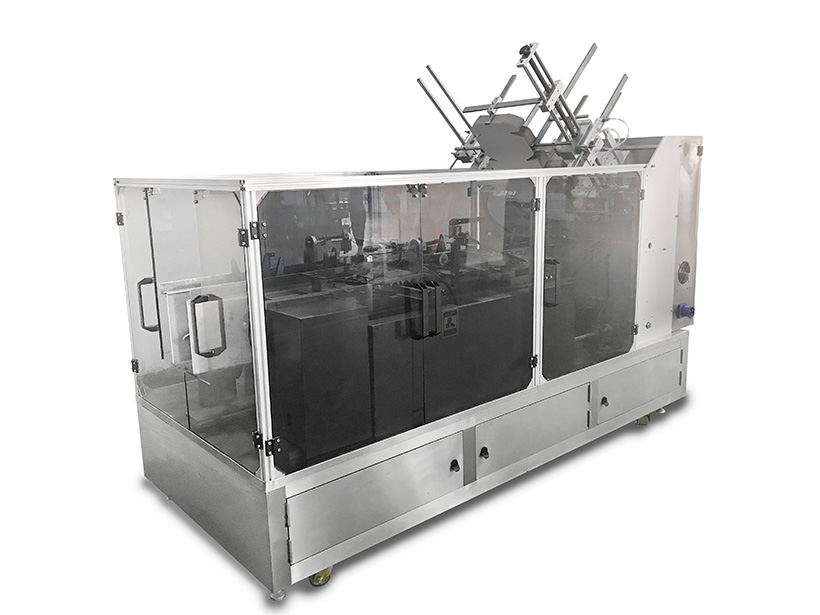

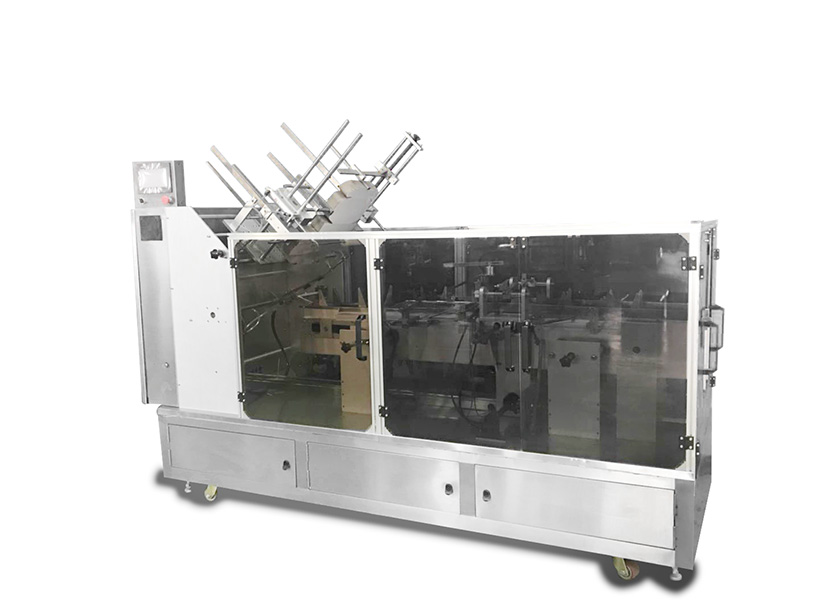

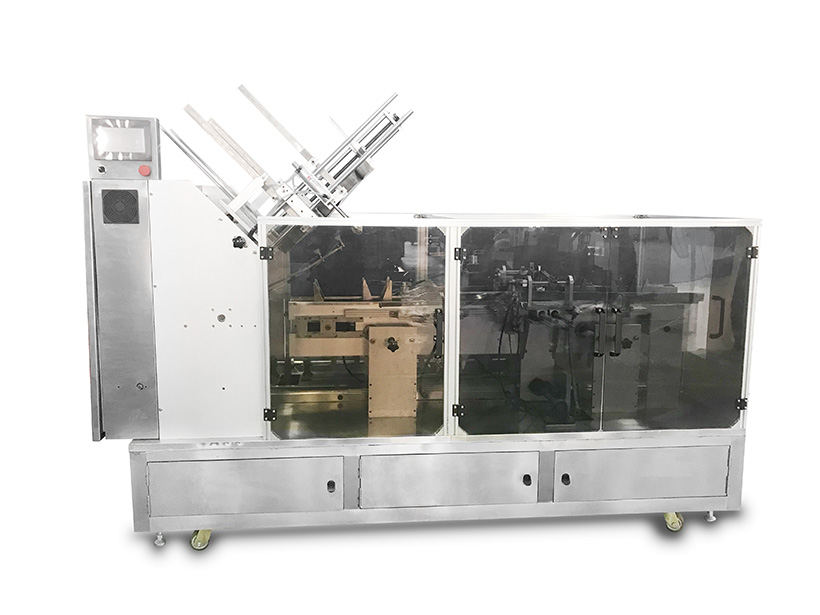

LY260C CARTON SHAPING MACHINE

LY260C CARTON SHAPING MACHINE

APPLICABLE FIELDS

It is mainly suitable for carton forming of products in such industries as food, medicine, cosmetics, daily commodities, electronic products, etc.

MAIN TECHNICAL PARAMETERS

• Model: LY260C Insert Box type;
• Production speed: 8-20 box/min;
• Suitable for box size: L.130-260 W.50-160 H.30-110 mm;
• Paper requirements: 250-400g;
• Equipment dimensions: L.2780 W.980 H.1662 mm;
• Machine weight: ≈920 KG;
• Power supply: AC220V 50HZ-60HZ;
• Total power: 0.75KW;
• Air consumption: 15-80L/min(0.5-0.7Mpa);

• Model: LY260C Sticky Box type;
• Production speed: 8-20 box/min;
• Suitable for box size: L.130-260 W.50-160 H.30-110 mm;
• Paper requirements: 250-400g;
• Equipment dimensions: L.2780 W.980 H.1662 mm;
• Machine weight: ≈950 KG;
• Power supply: AC220V 50HZ-60HZ;
• Total power: 4.5KW;
• Air consumption: 15-80L/min(0.5-0.7Mpa);

FEATURES

The equipment is developed by our company to meet the need for carton forming. Integrating paper separating, flap folding and forming, it has such features as compact and reasonable design, simple operation and convenient maintenance and servicing.

Within the specified range of the same equipment, the dial scale can be quickly adjusted to achieve the use of multiple specifications.

The parts that contact the carton are made of SUS304 stainless steel.

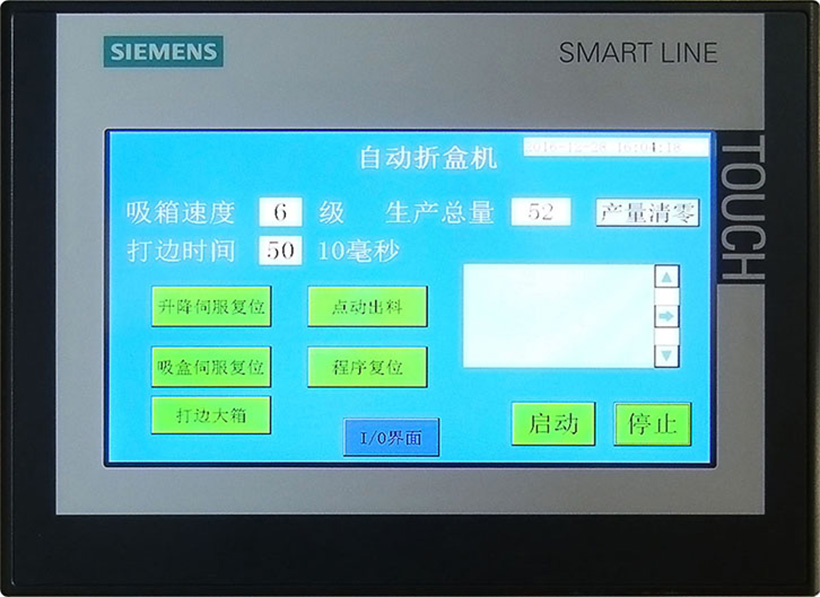

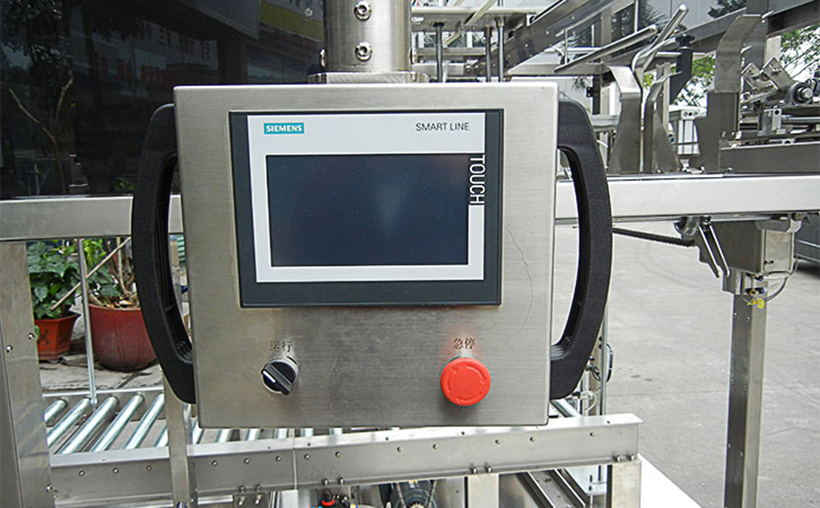

High degree of automation: PLC programmable control system, man-machine interface displaying forming speed, production capacity, automatic alarm for lack of paper, fault reasons and other parameters.

The driving and friction parts strictly follow the standard, with less wear and less replacement of parts at later periods.

It can be equipped with the hot melt glue machine according to customer requirements. Box sealing can be achieved by hot melt glue spraying or mechanical glue spreading.

The equipment can be used singly or connected with various kinds of machinery and equipment such as the manipulator, assembly machine, labeling machine and code printing machine at its front and rear ends for linked production.

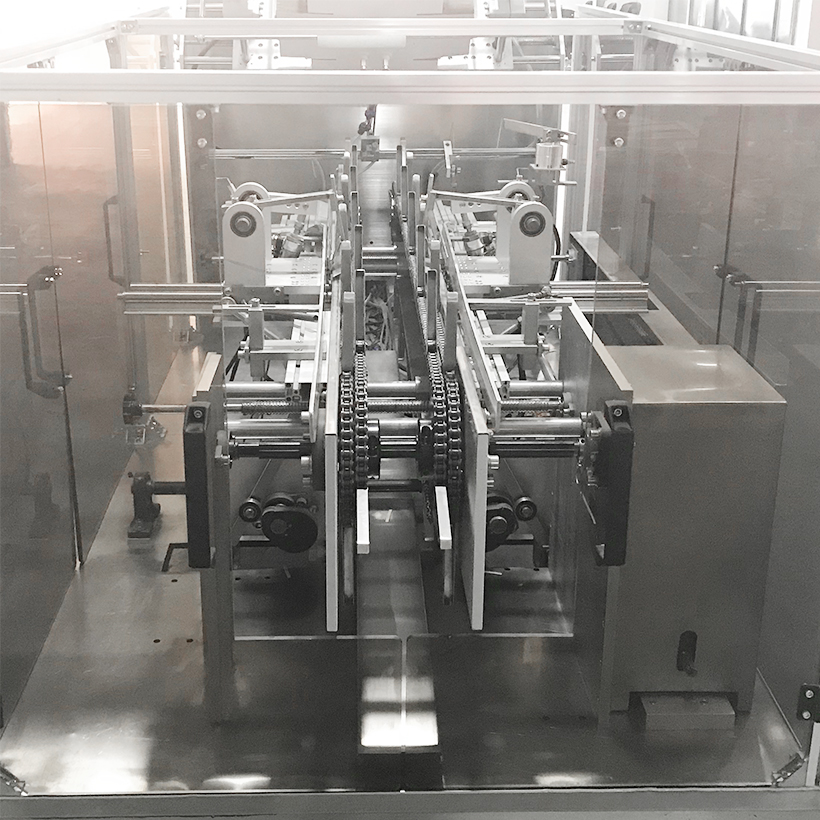

Part of the machine
