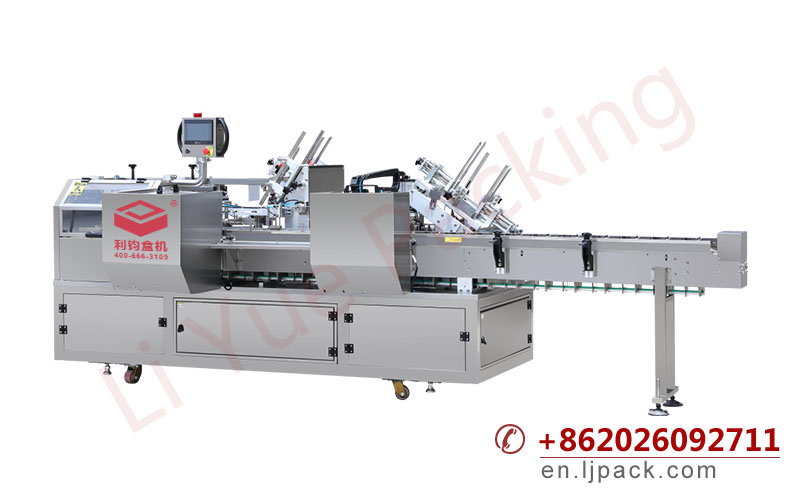

LY200-3 AUTOMATIC CARTONING MACHINE WITH INNER TRAY

LY200-3 AUTOMATIC CARTONING MACHINE WITH INNER TRAY

APPLICABLE FIELDS

It is mainly suitable for cartoning of products with inner tray such as perfume, skin care lotion, sunscreen, hand cream, facial cleanser, etc. in the cosmetic industry.

MAIN TECHNICAL PARAMETERS

• Model: LY200-3 Insert Box type;
• Production speed: 20-50 box/min;
• Suitable for box size: L.130-200 W.40-100 H.30-60 mm;
• Paper requirements: 250-400g;
• Equipment dimensions: L.3520 W.1671 H.1572 mm;
• Machine weight: ≈1120 KG;
• Power supply: AC220V 50HZ-60HZ;
• Total power: 0.75KW;
• Air consumption: 15-80L/min(0.5-0.7Mpa);

• Model: LY200-3 Insert Box type;
• Production speed: 20-50 box/min;
• Suitable for box size: L.130-200 W.40-100 H.30-60 mm;
• Paper requirements: 250-400g;
• Equipment dimensions: L.3520 W.1671 H.1572 mm;
• Machine weight: ≈1150 KG;
• Power supply: AC220V 50HZ-60HZ;
• Total power: 4.5KW;
• Air consumption: 15-80L/min(0.5-0.7Mpa);

FEATURES

The equipment is a packaging production line independently researched and developed by our company for the cosmetic industry. Integrating tray feeding, automatic material feeding, box opening, boxing, box folding and sealing, it has such features as compact and reasonable design, simple operation and convenient maintenance and servicing.

Switching between working with tray and without tray can be carried out according to customer requirements.

Within the specified range of the same equipment, the dial scale can be quickly adjusted to achieve the use of multiple specifications.

The parts that contact the product are made of SUS304 stainless steel.

High degree of automation: PLC programmable control system, man-machine interface displaying cartoning speed, quantity, automatic alarm for lack of cartons, no box opening in case of no product, fault reasons and other parameters.

The driving and friction parts strictly follow the standard, with less wear and less replacement of parts at later periods.

The equipment can be used singly or connected with various kinds of machinery and equipment such as the automatic filling machine, three-dimensional packaging machine and code printing machine at its front and rear ends for linked production.

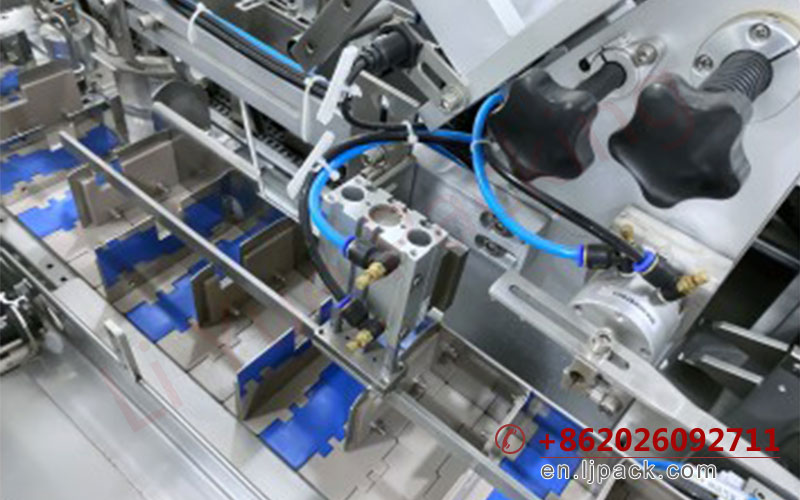

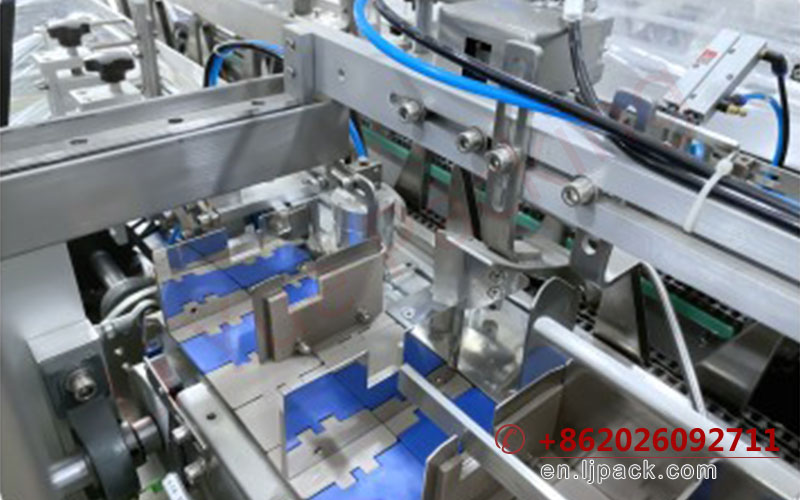

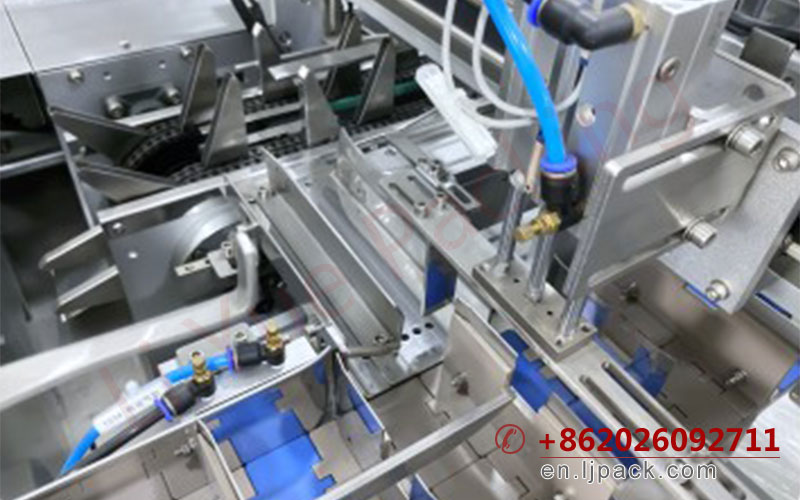

Part of machine
