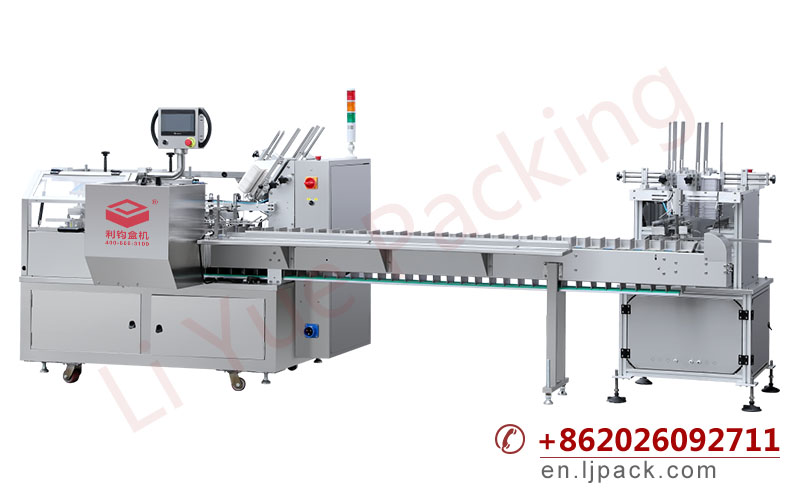

LY300-3 AUTOMATIC CARTONING MACHINE WITH INNER TRAY

LY300-3 AUTOMATIC CARTONING MACHINE WITH INNER TRAY

APPLICABLE FIELDS

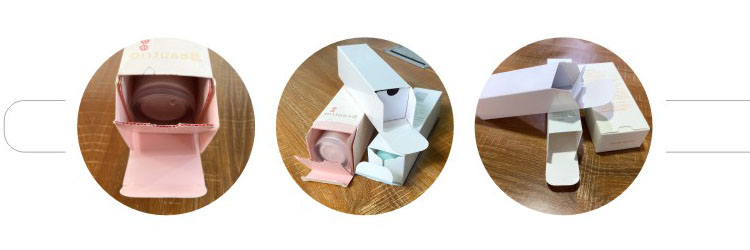

It is mainly suitable for cartoning of products with inner tray such as shampoo, shower gel, hair mask, etc. in the cosmetic industry.

MAIN TECHNICAL PARAMETERS

• Model: LY300-3 Insert Box type;
• Production speed: 20-50 box/min;
• Suitable for box size: L.130-260 W.50-160 H.30-110 mm;
• Paper requirements: 250-400g;
• Equipment dimensions: L.2780 W.980 H.1662 mm;
• Machine weight: ≈920 KG;
• Power supply: AC220V 50HZ-60HZ;
• Total power: 0.75KW;
• Air consumption: 15-80L/min(0.5-0.7Mpa);

• Model: LY300-3 Sticky Box type;
• Production speed: 20-50 box/min;
• Suitable for box size: L.130-260 W.50-160 H.30-110 mm;
• Paper requirements: 250-400g;
• Equipment dimensions: L.2780 W.980 H.1662 mm;
• Machine weight: ≈950 KG;
• Power supply: AC220V 50HZ-60HZ;
• Total power: 4.5KW;
• Air consumption: 15-80L/min(0.5-0.7Mpa);

FEATURES

The equipment is a packaging production line independently researched and developed by our company for the cosmetic industry. Integrating tray feeding, manual material feeding, box opening, boxing, box folding and sealing, it has such features as compact and reasonable design, simple operation and convenient maintenance and servicing.

The equipment can be connected with various kinds of machinery and equipment such as the filling machine and three-dimensional packaging machine at its front and rear ends to realize such functions as leaflet feeding, character code and sequence number printing, waste rejection, etc.

Within the specified range of the same equipment, the dial scale can be quickly adjusted to achieve the use of multiple specifications.

The parts that contact the product are made of SUS304 stainless steel.

High degree of automation: PLC programmable control system, man-machine interface displaying cartoning speed, quantity, automatic alarm for lack of cartons, no box opening in case of no product, fault reasons and other parameters.

The driving and friction parts strictly follow the standard, with less wear and less replacement of parts at later periods.

It can be equipped with the hot melt glue machine according to customer requirements. Box sealing can be achieved by hot melt glue spraying or mechanical glue spreading.

The equipment can be used singly or connected with various kinds of machinery and equipment such as the material sorting machine, manipulator, three-dimensional packaging machine, pillow packaging machine, vertical bag packaging machine, assembly machine, automatic filling machine, labeling machine and code printing machine at its front and rear ends for linked production.

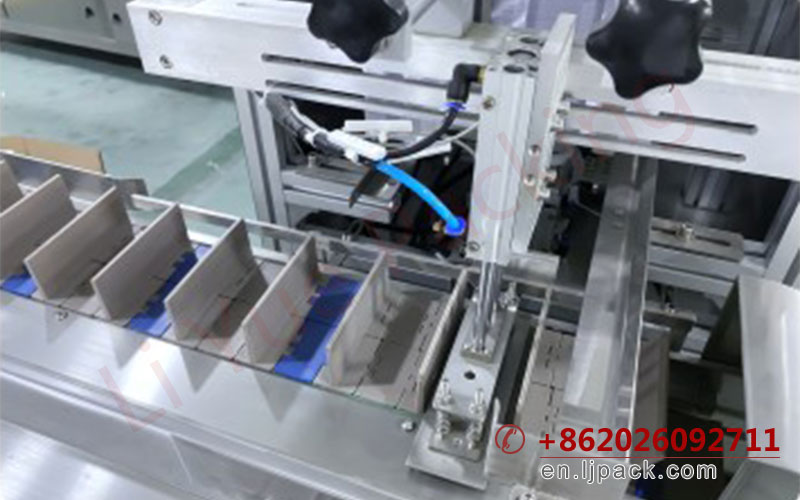

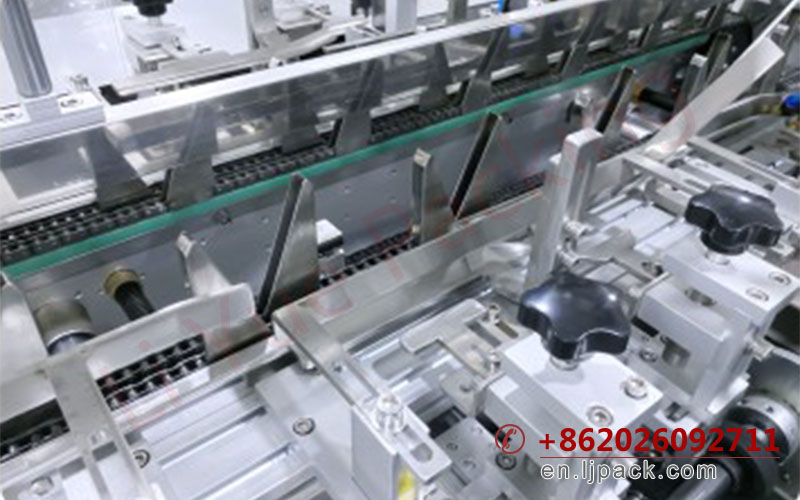

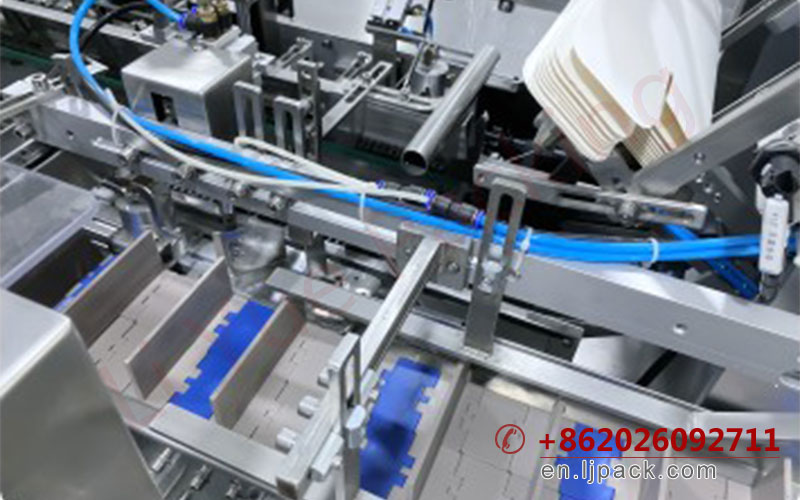

Part of machine
