INTRODUCTION

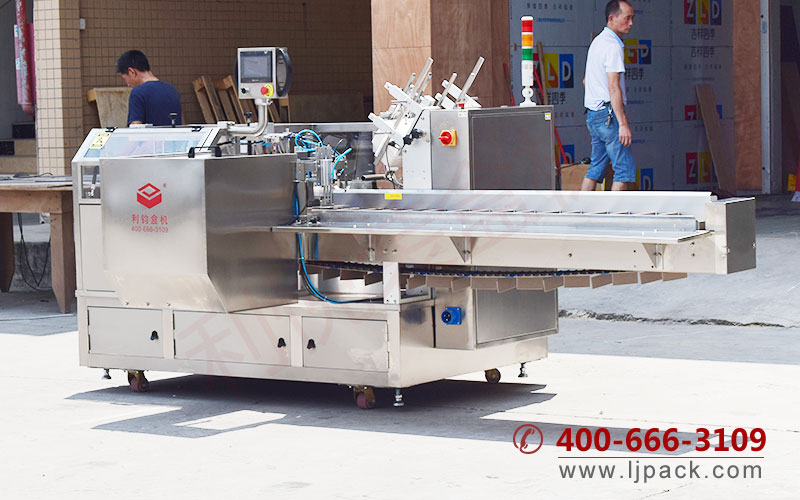

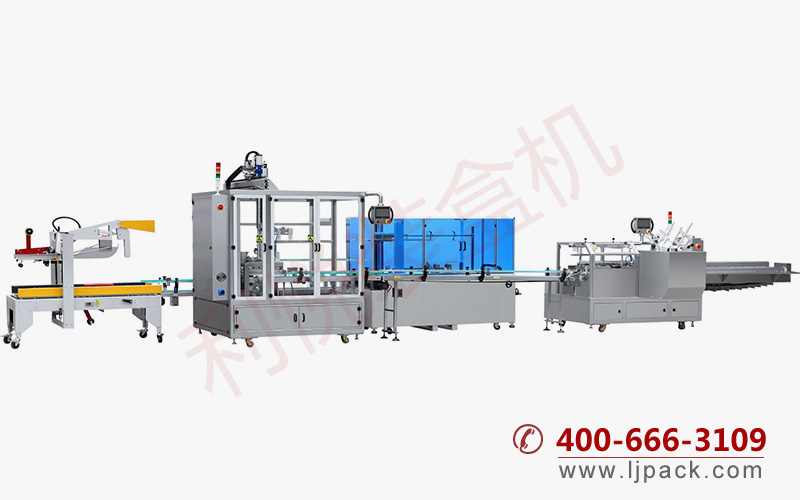

LY550LQ CARTONING AND CASE PACKING PRODUCTION LINE
Equipment dimensions
MAIN TECHNICAL PARAMETERS
- Model: Box parking machine;
- Production speed: 5-40 box/min;
- Suitable for box size: L.140-300 W.60-175 H.40-110 mm;
- Paper requirements: 250-400g cardboard;
- Equipment dimensions: L.2685 W.1560 H.1672 mm;
- Machine weight: ≈1320 KG;
- Power supply: AC220V 50HZ-60HZ;
- Total power: 1.5KW;
- Air consumption: 15-80L/min(0.5-0.7Mpa);
- Model: Carton parking machine;
- Production speed: 1-8 Carton/min;
- Suitable for box size: L.300-600 W.200-500 H.200-500 mm;
- Paper requirements: Corrugated paper;
- Equipment dimensions: L.2670 W.1900 H.2230 mm;
- Machine weight: ≈1260 KG;
- Power supply: AC220V 50HZ-60HZ;
- Total power: 4.5KW;
- Air consumption: 30-180L/min(0.5-0.7Mpa);
APPLICABLE FIELDS
The production line is mainly suitable for cartoning and case
packing of products such as food, medical supplies, toys, stationery, auto parts, cosmetics, hardware, daily commodities, etc.
FEATURES

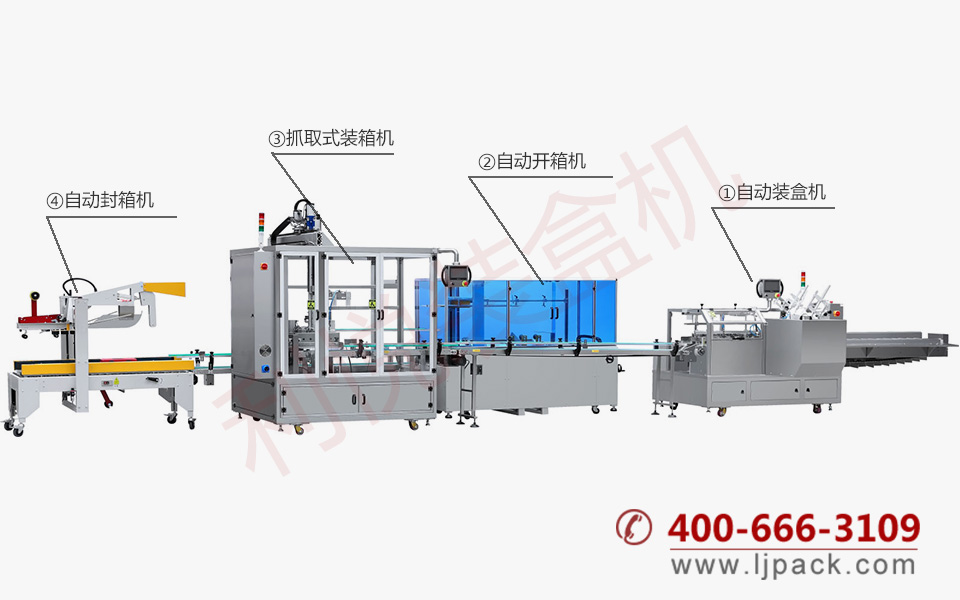

The unmanned automatic packaging production line integrates product cartoning, carton opening and bottom sealing machine, automatic grapping case packing, “—”-shaped cover folding and case sealing.
The parts that contact the product are made of SUS304 stainless steel.
The driving and friction parts strictly follow the standard, with less wear and less replacement of parts at later periods.
The packaging production line equipment has such advantages as manpower saving, neat, consistent and stable packaging appearance. The cartoning machine completes box opening, boxing, flap folding, page folding, glue spraying, glue sticking, code printing, labeling, and then case unpacking, bottom sealing, palletizing and case packing are carried out, and finally the cartons enter the cover folding “I”-shaped case sealing machine.
The equipment can be used singly or connected with various kinds of machinery and equipment such as the material sorting machine, manipulator, three-dimensional packaging machine, pillow packaging machine, vertical bag packaging machine, assembly machine, automatic filling machine, labeling machine and code printing machine at its front and rear ends for linked production.

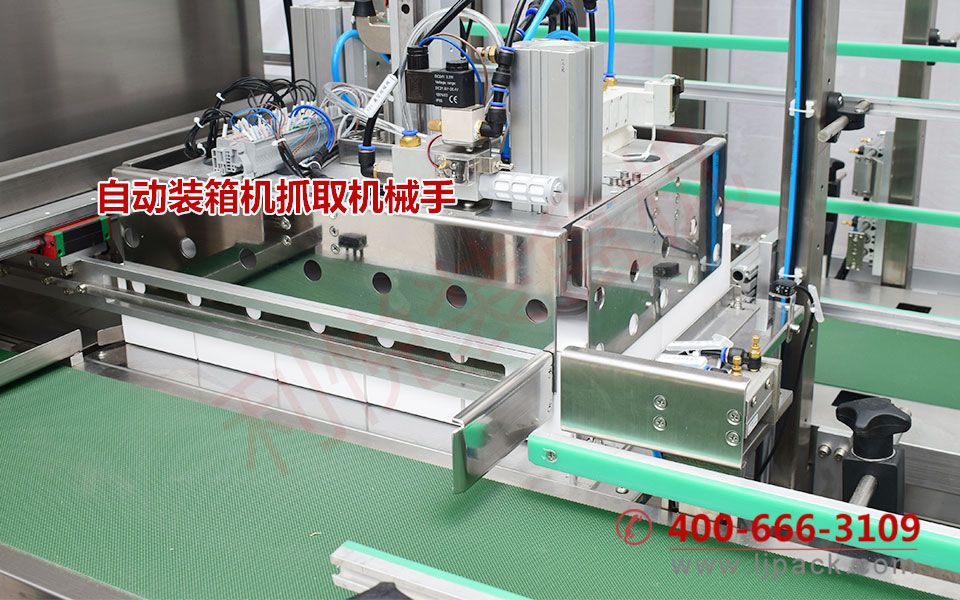

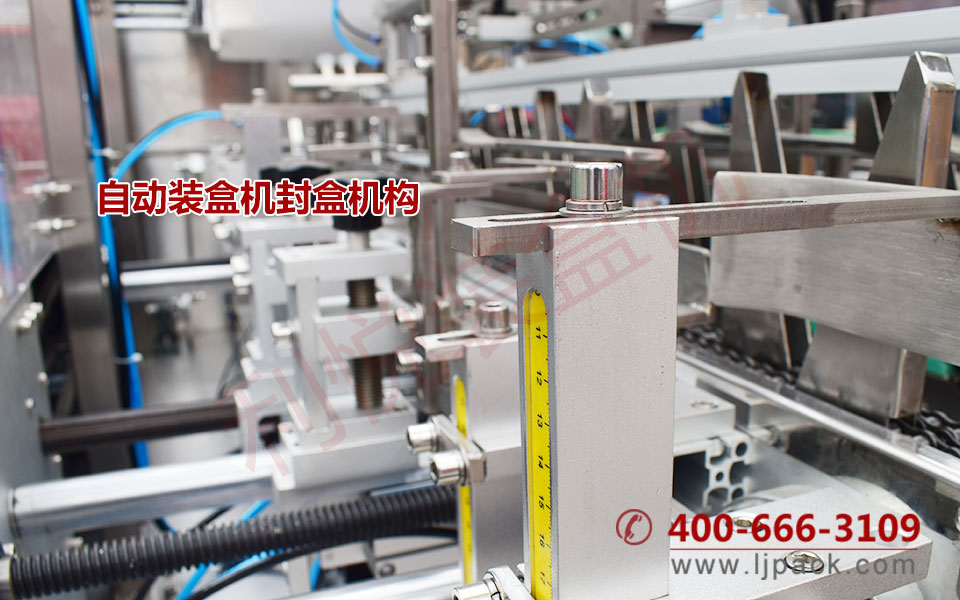

PART of machine
RELATED

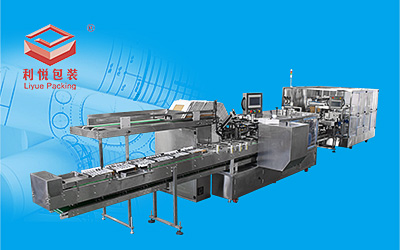

LY550F AUTOMATIC CARTONING AND
The production line is mainly suitable for cartoning and case packing of products such as food, medical supplies, toys, stationery, auto parts, cosmetics, hardware, daily commodities, etc.

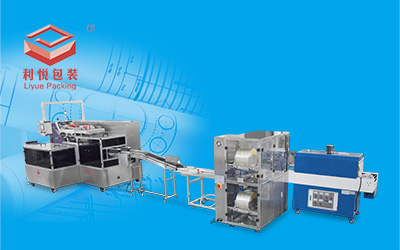

LY550WQ CARTONING AND CASE PACK
The production line is mainly suitable for cartoning and case.packing of products such as food medical supplies toys stationery auto parts cosmetics hardware daily commodities etc.

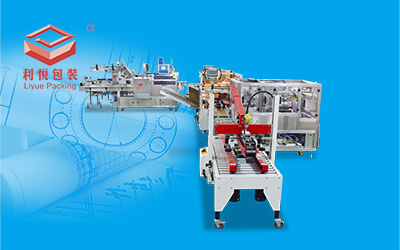

LY250F HIGH-SPEED CARTONING, BO
The equipment is mainly suitable for high-speed cartoning of products in such industries as medical supplies, cosmetics, food, daily commodities, etc.

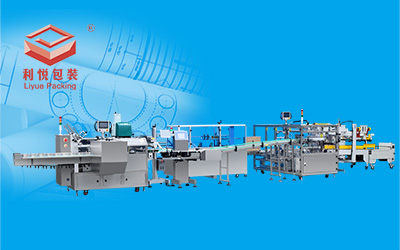

Automatic packing production li
