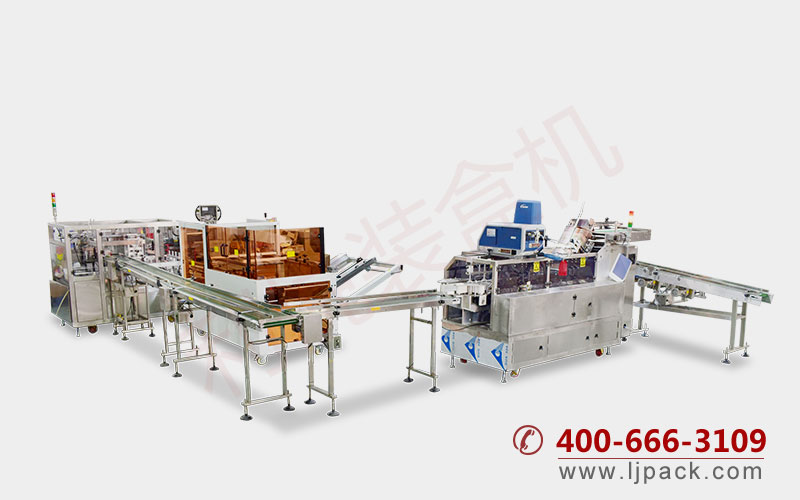

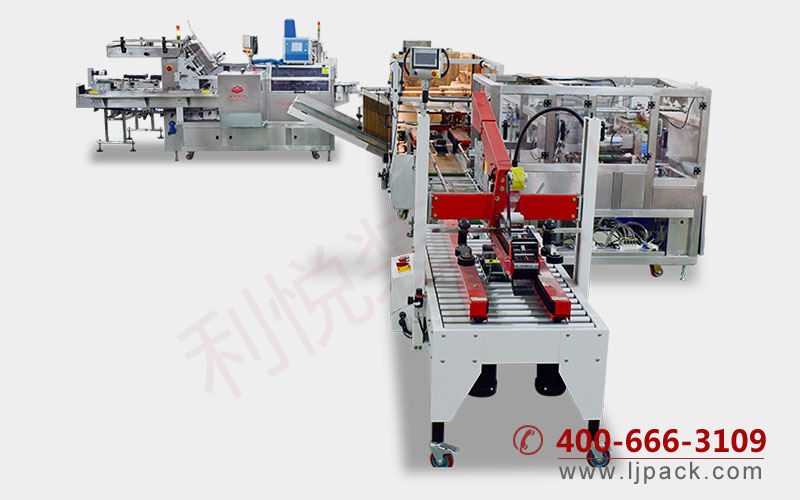

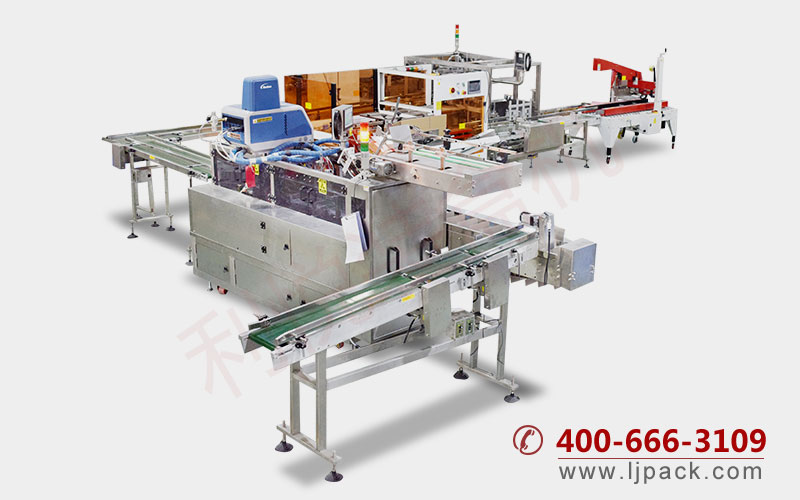

LY550F AUTOMATIC CARTONING AND CASE SEALING PRODUCTION LINE

LY550F AUTOMATIC CARTONING AND CASE SEALING PRODUCTION LINE

MAIN TECHNICAL PARAMETERS

• Model: LY550F Insert Box type;
• Production speed: 20-50 box/min;
• Suitable for box size: L.130-200+ W.30-160 H.30-70 mm；
• Paper requirements: 250-400g cardboard + Corrugated paper;
• Equipment dimensions: L.6380 W.2471 H.1572 mm;
• Machine weight: ≈2620 KG;
• Power supply: AC220V 50HZ-60HZ;
• Total power: 3.75KW;
• Air consumption: 15-80L/min(0.5-0.7Mpa);

MAIN TECHNICAL PARAMETERS

• Model: LY550F Sticky Box type;
• Production speed: 20-50 box/min;
• Suitable for box size: L.130-200+ W.30-160 H.30-70 mm；
• Paper requirements: 250-400g cardboard + Corrugated paper;
• Equipment dimensions: L.6380 W.2471 H.1572 mm;
• Machine weight: ≈2650 KG;
• Power supply: AC220V 50HZ-60HZ;
• Total power: 7.5KW;
• Air consumption: 15-80L/min(0.5-0.7Mpa);

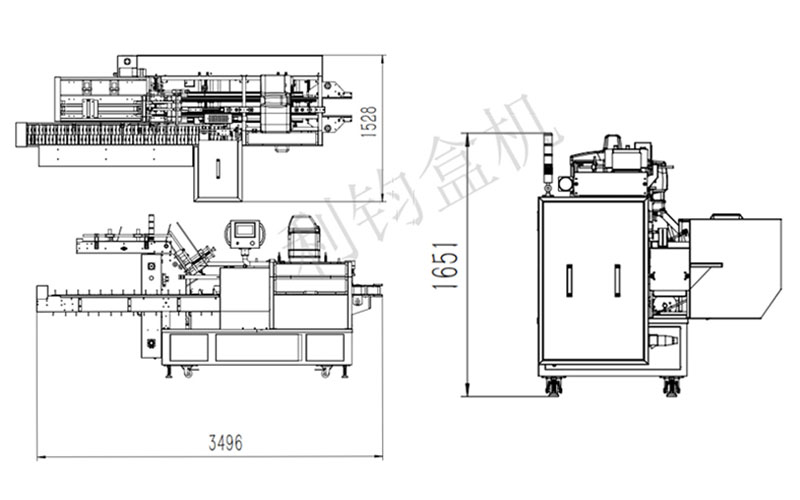

Equipment dimensions

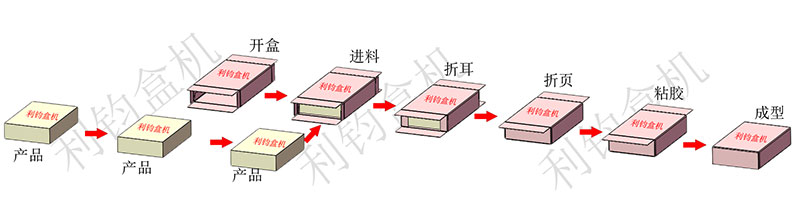

Packaging process

APPLICABLE FIELDS

The production line is mainly suitable for cartoning and case packing of products such as food, medical supplies, toys, stationery, auto parts, cosmetics, hardware, daily commodities, etc.

FEATURES

The whole packaging production line includes: product cartoning, carton opening and bottom sealing machine, (manual or automatic) case packing, after entering the “—”-shaped cover folding and case sealing machine and completing “—”-shaped case sealing, entering the corner and edge case sealing machine to carry out corner and edge case sealing.

The parts that contact the product are made of SUS304 stainless steel.

The driving and friction parts strictly follow the standard, with less wear and less replacement of parts at later periods.

The packaging production line equipment has such advantages as manpower saving, neat, consistent and stable packaging appearance. The cartoning machine completes box opening, boxing, flap folding, page folding, glue spraying, glue sticking, code printing, labeling, and then case unpacking, bottom sealing, palletizing and case packing are carried out, and finally the cartons enter the cover folding “I”-shaped case sealing machine.

The equipment can be used singly or connected with various kinds of machinery and equipment such as the material sorting machine, manipulator, three-dimensional packaging machine, pillow packaging machine, vertical bag packaging machine, assembly machine, automatic filling machine, labeling machine and code printing machine at its front and rear ends for linked production.

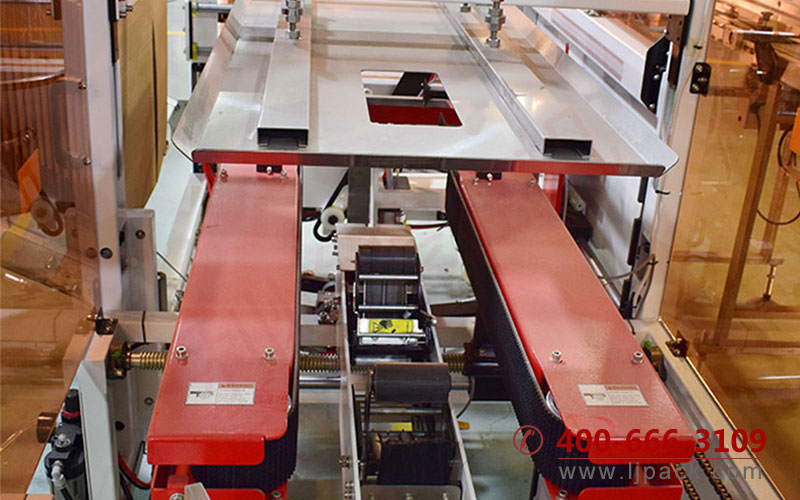

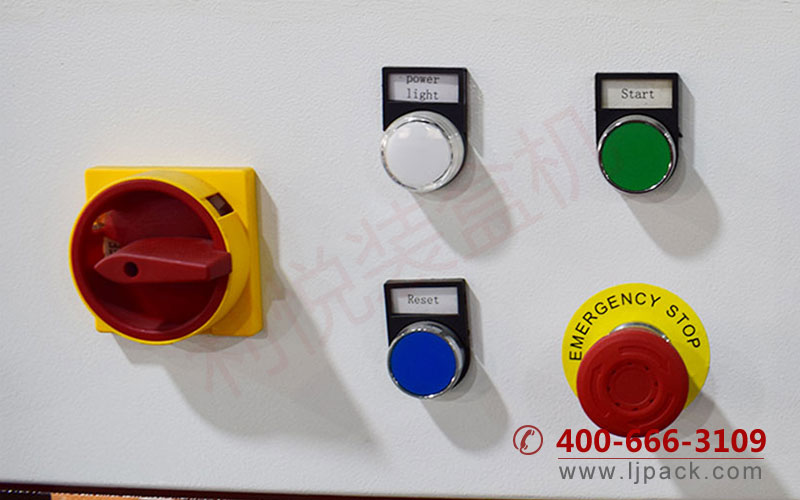

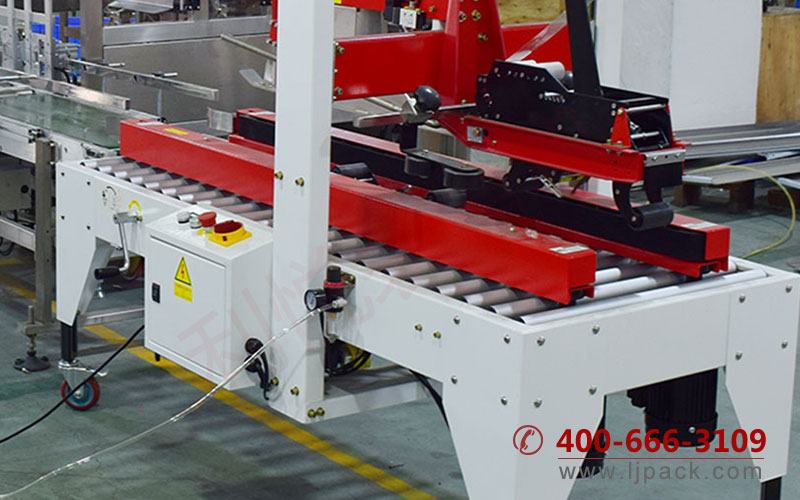

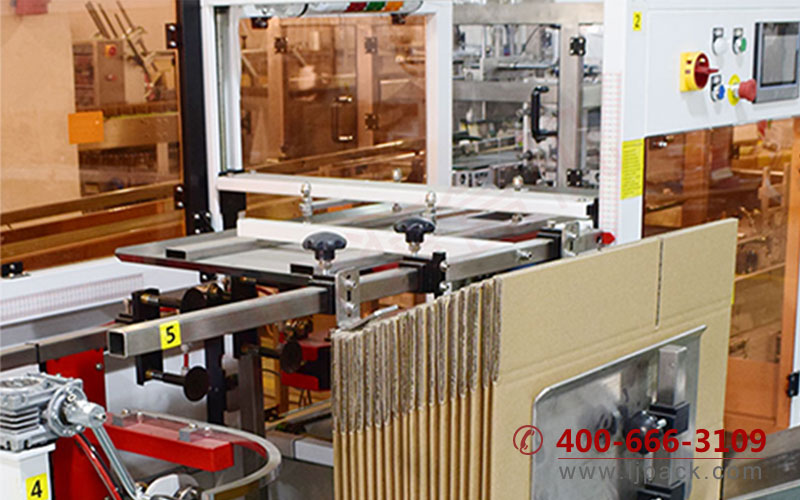

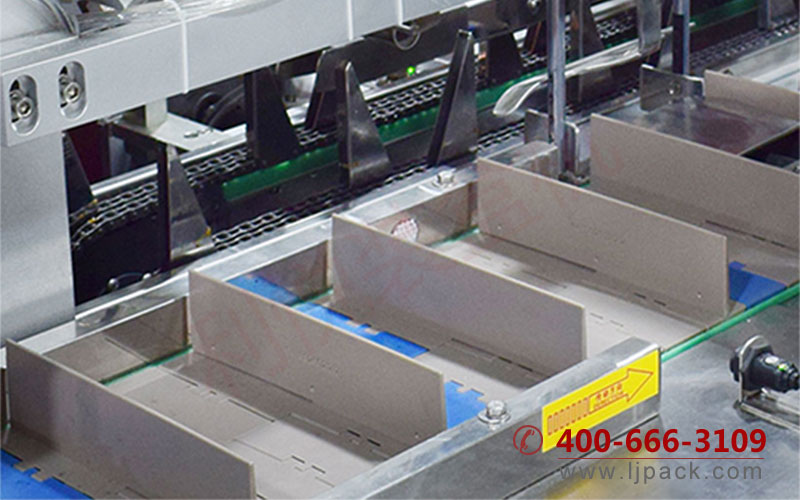

Part of machine
