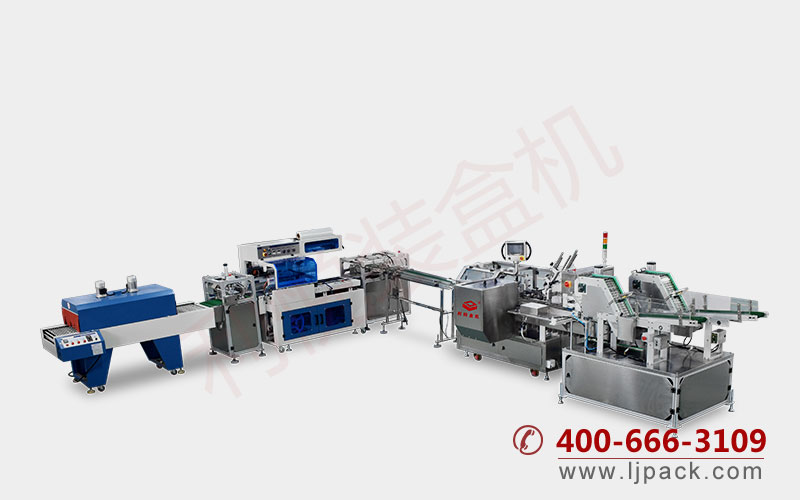

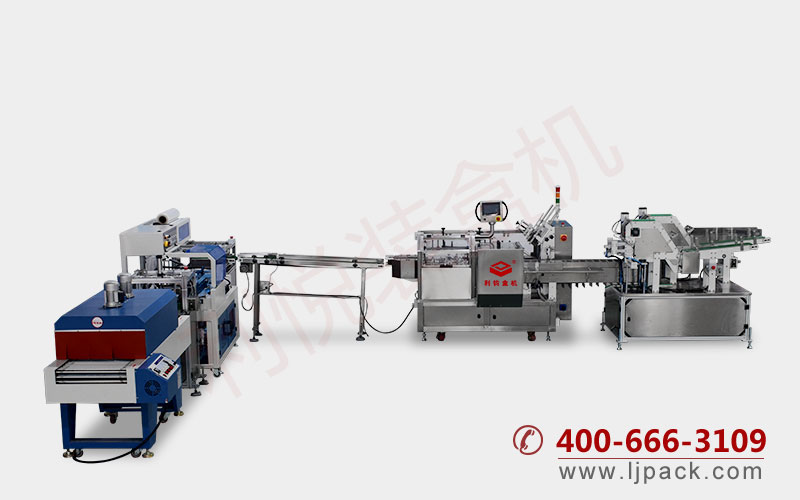

LY200-3 STATIONERY CARTONING PRODUCTION LINE

LY200-3 STATIONERY CARTONING PRODUCTION LINE

MAIN TECHNICAL PARAMETERS

• Model: LY200-3 Insert Box type;
• Production speed: 20-40 box/min;
• Suitable for box size: L.130-200 W.40-110 H.20-50 mm;
• Paper requirements: 250-400g;
• Equipment dimensions: L.11480 W.1871 H.1672 mm;
• Machine weight: ≈1720 KG;
• Power supply: AC220V 50HZ-60HZ;
• Total power: 0.75KW;
• Air consumption: 15-80L/min(0.5-0.7Mpa);

MAIN TECHNICAL PARAMETERS

• Model: LY200-3 Sticky Box type;
• Production speed: 20-40 box/min;
• Suitable for box size: L.130-200 W.40-110 H.20-50 mm;
• Paper requirements: 250-400g;
• Equipment dimensions: L.11480 W.1871 H.1672 mm;
• Machine weight: ≈1750 KG;
• Power supply: AC220V 50HZ-60HZ;
• Total power: 4.5KW;
• Air consumption: 15-80L/min(0.5-0.7Mpa);

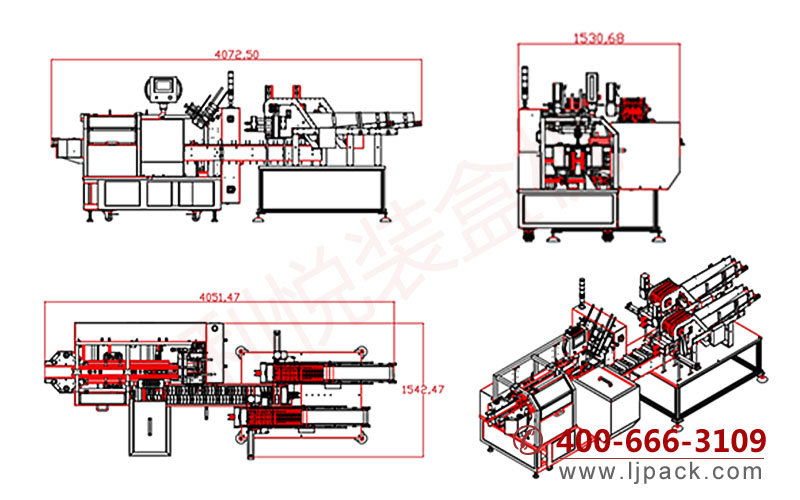

Equipment dimensions

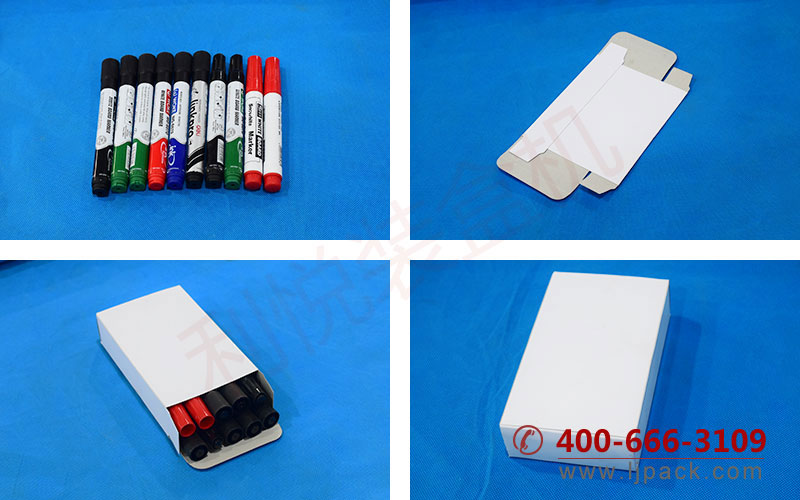

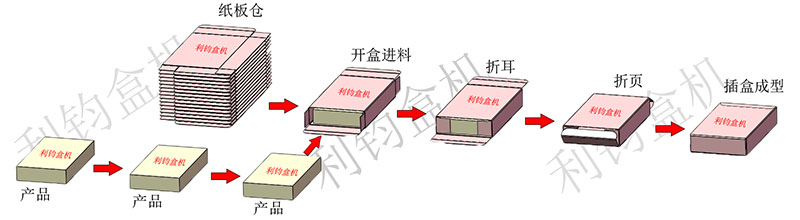

Packaging process

APPLICABLE FIELDS

It is mainly suitable for products such as pencils, marker pens, ballpoint pens, big-end pens, whiteboard pens, etc. in the stationery industry.

FEATURES

The equipment is an automatic cartoning production line independently researched and developed by our company for the stationery industry. Integrating counting, sorting, box opening, boxing, box folding, box sealing, box piling and film packaging, it has such features as compact and reasonable design, simple operation and convenient maintenance and servicing.

Within the specified range of the same equipment, the dial scale can be quickly adjusted to achieve the use of multiple specifications.

The parts that contact the product are made of SUS304 stainless steel.

High degree of automation: PLC programmable control system, man-machine interface displaying cartoning speed, count, output, automatic alarm for lack of cartons, no box opening in case of no product, fault reasons and other parameters.

The driving and friction parts strictly follow the standard, with less wear and less replacement of parts at later periods.

It can be equipped with the hot melt glue machine according to customer requirements. Box sealing can be achieved by hot melt glue spraying or mechanical glue spreading.

The equipment can be used singly or connected with various kinds of machinery and equipment such as the material sorting machine, manipulator, three-dimensional packaging machine, pillow packaging machine, vertical bag packaging machine, assembly machine, automatic filling machine, labeling machine and code printing machine at its front and rear ends for linked production.

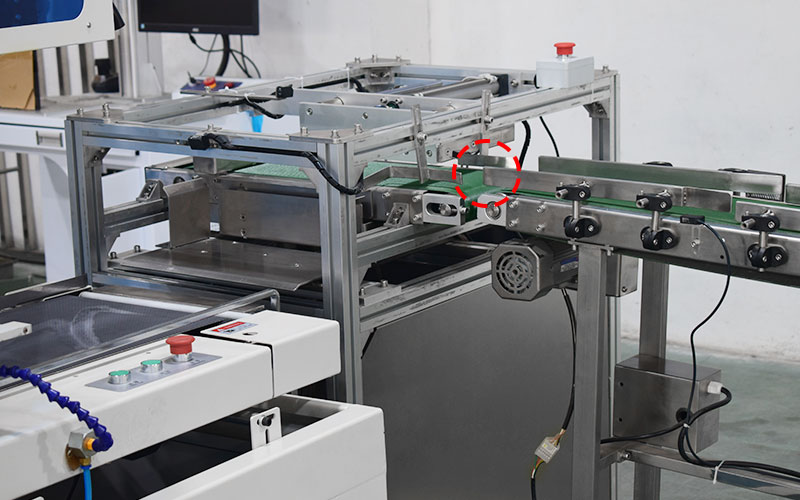

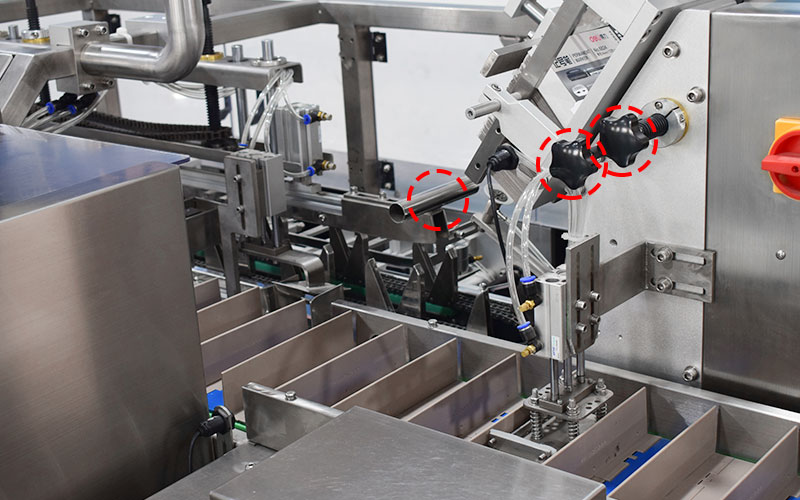

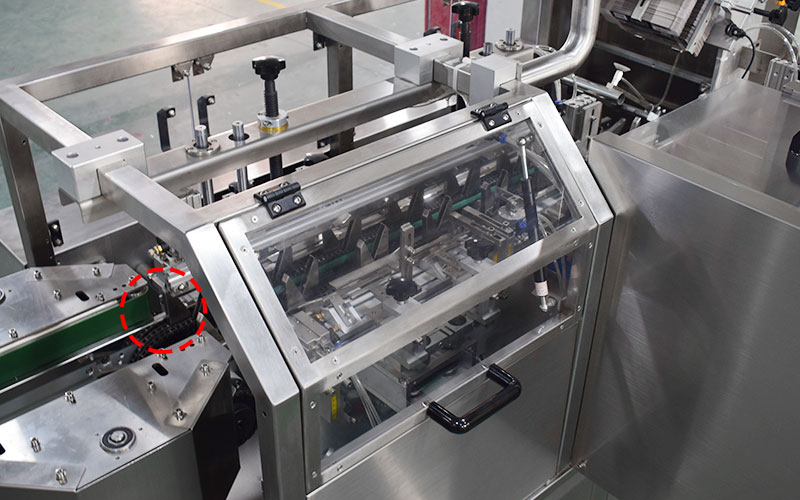

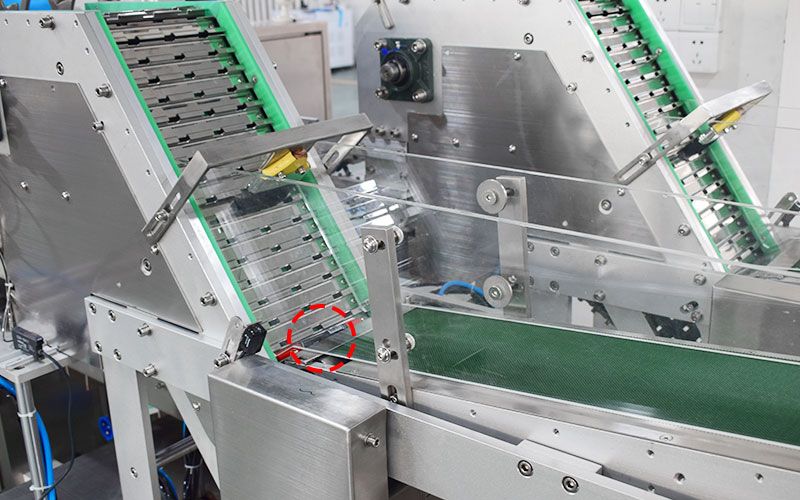

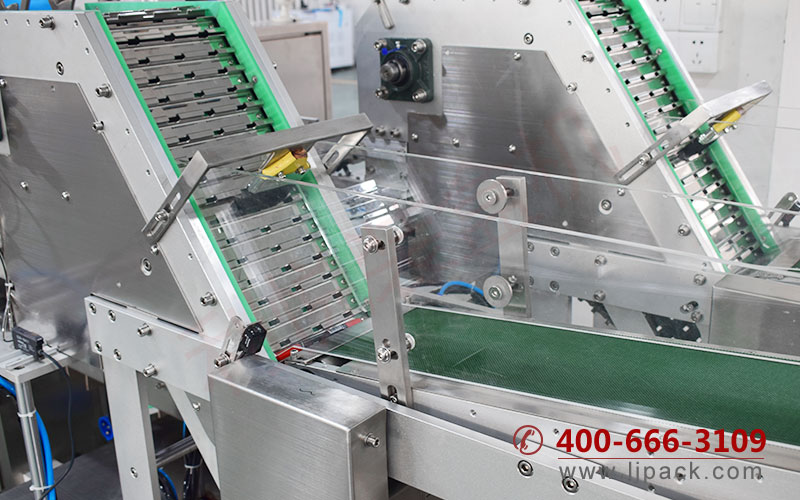

Part of the machine
