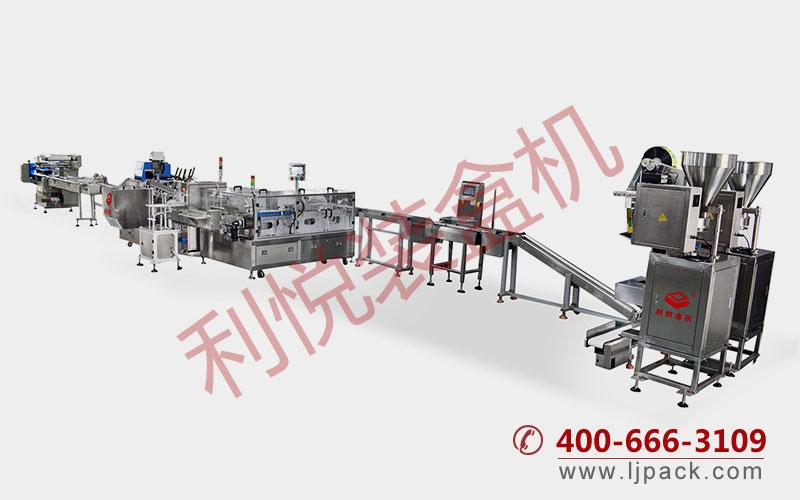

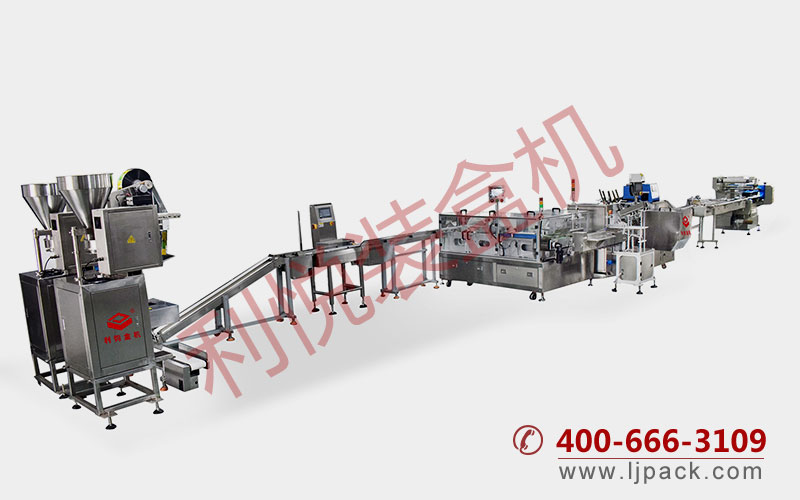

LY300F AUTOMATIC CARTONING PRODUCTION LINE FOR BAR-SHAPED PRODUCTS

MAIN TECHNICAL PARAMETERS

• Model: LY300F Insert Box type;
• Production speed: 8-45 box/min;
• Suitable for box size: L.130-260 W.50-160 H.30-110 mm;
• Paper requirements: 250-400g;
• Equipment dimensions: L.2780 W.980 H.1662 mm;
• Machine weight: ≈1200 KG;
• Power supply: AC220V 50HZ-60HZ;
• Total power: 0.75KW;
• Air consumption: 15-80L/min(0.5-0.7Mpa);

MAIN TECHNICAL PARAMETERS

• Model: LY300F Sticky Box type;
• Production speed: 8-45 box/min;
• Suitable for box size: L.130-260 W.50-160 H.30-110 mm;
• Paper requirements: 250-400g;
• Equipment dimensions: L.2780 W.980 H.1662 mm;
• Machine weight: ≈1230 KG;
• Power supply: AC220V 50HZ-60HZ;
• Total power: 4.5KW;
• Air consumption: 15-80L/min(0.5-0.7Mpa);

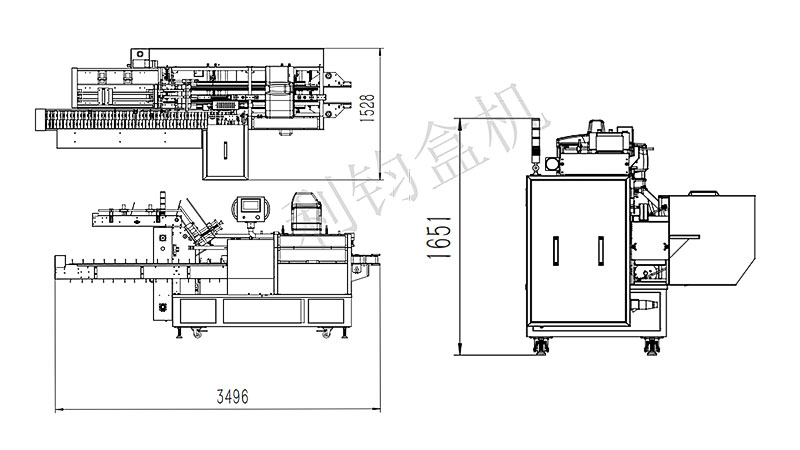

Equipment dimensions

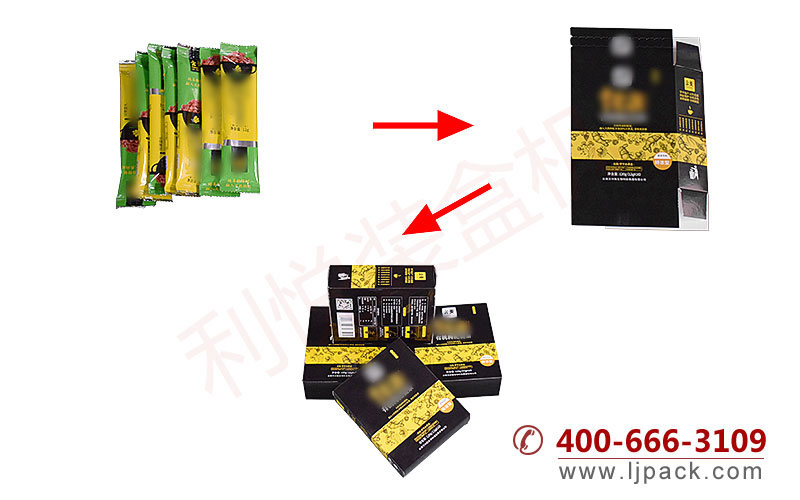

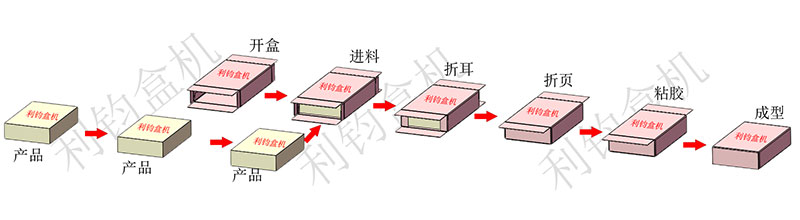

Packaging process

APPLICABLE FIELDS

It is mainly suitable for automatic sorting, counting and cartoning of products such as bagged granules, coffee, milk powder, white sugar, ferment, coconut powder, oatmeal, meal replacement powder, multigrain flour, panax notoginseng powder, etc. in such industries as food, medicine, health products, etc.

FEATURES

The production line is independently researched and developed by our company for bar-shaped products. Integrating bagging, weighing, counting, sorting, box opening, boxing, box folding, box sealing and film packaging, it has such features as compact and reasonable design, simple operation and convenient maintenance and servicing.

The functions such as automatic counting and sorting of leaflets, character code and sequence number printing, waste rejection, etc. can be added by connecting the single-column or multi-column vertical packaging machine at the front end of the equipment.

Within the specified range of the same equipment, the dial scale can be quickly adjusted to achieve the use of multiple specifications.

The parts that contact the product are made of SUS304 stainless steel.

High degree of automation: PLC programmable control system, man-machine interface displaying cartoning speed, quantity, automatic alarm for lack of cartons, no box opening in case of no product, fault reasons and other parameters.

The driving and friction parts strictly follow the standard, with less wear and less replacement of parts at later periods.

It can be equipped with the hot melt glue machine according to customer requirements. Box sealing can be achieved by hot melt glue spraying or mechanical glue spreading.

The equipment can be used singly or connected with various kinds of machinery and equipment such as the material sorting machine, manipulator, three-dimensional packaging machine, pillow packaging machine, vertical bag packaging machine, assembly machine, automatic filling machine, labeling machine and code printing machine at its front and rear ends for linked production.

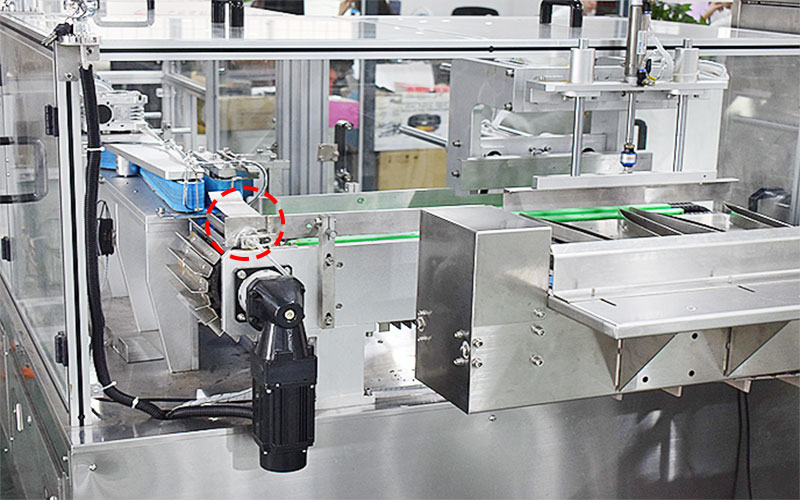

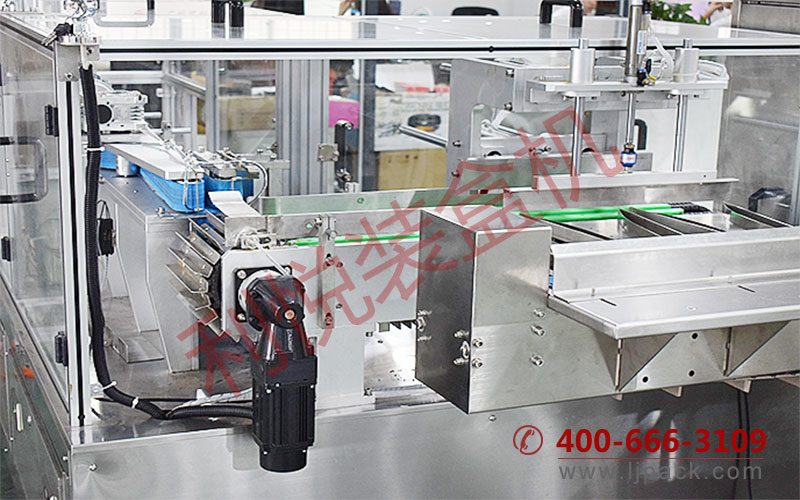

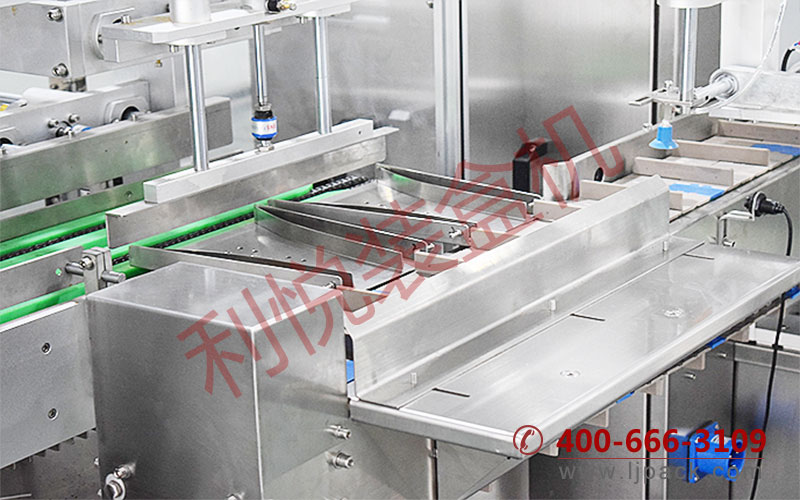

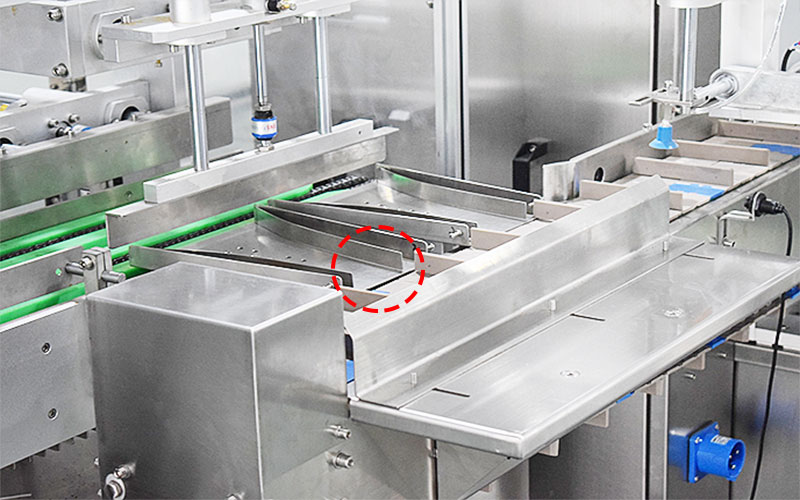

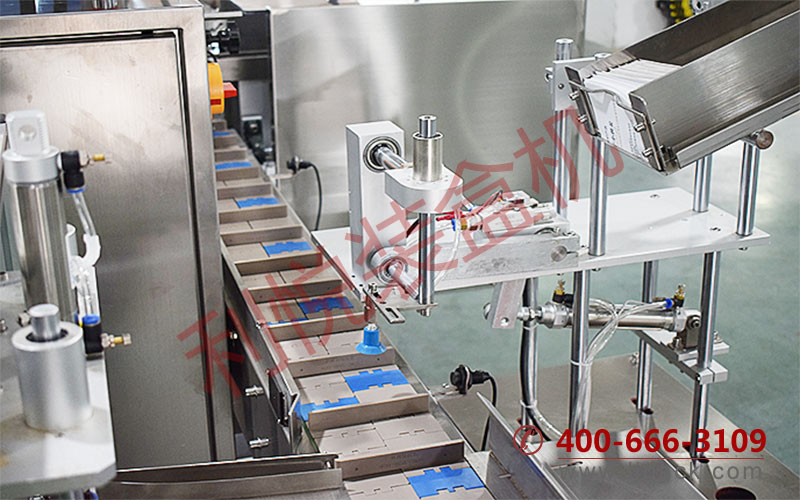

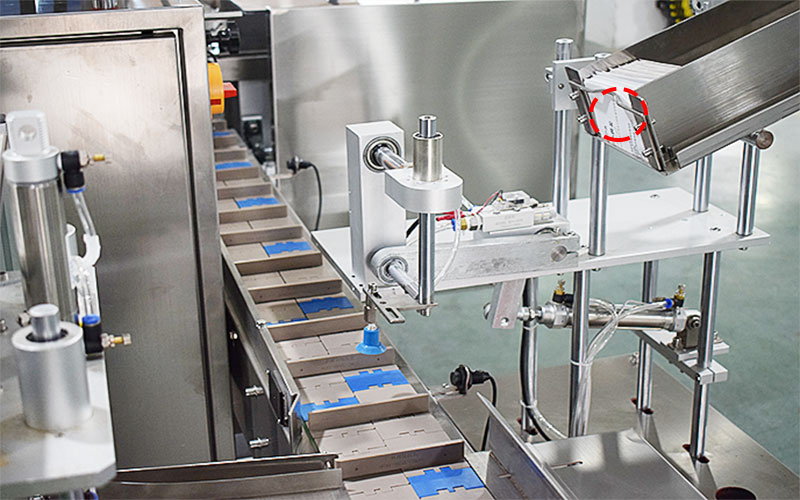

Part of the machine
