LY500D corrugated carton cartoning machine

  • Model: LY500D Sticky Box type;
  • Production speed: 15-50 box/min;
  • Suitable for box size: L.150-500+ W.100-420+ H.30-70+ mm;
  • Paper requirements: strong>Corrugated paper or Kraft paper ;
  • Equipment dimensions: L.7979 W.2140 H.1700 mm;
  • Machine weight: ≈1460 KG;
  • Power supply: AC220V 50HZ-60HZ;
  • Total power: 5KW;
  • Air consumption: strong>15-80L/min
Tel:+862026092711
Email:ljpack2009@163.com

INTRODUCTION

LY500D CORRUGATED CARTON CARTONING MACHINE

LY500D CORRUGATED CARTON CARTONING MACHINE

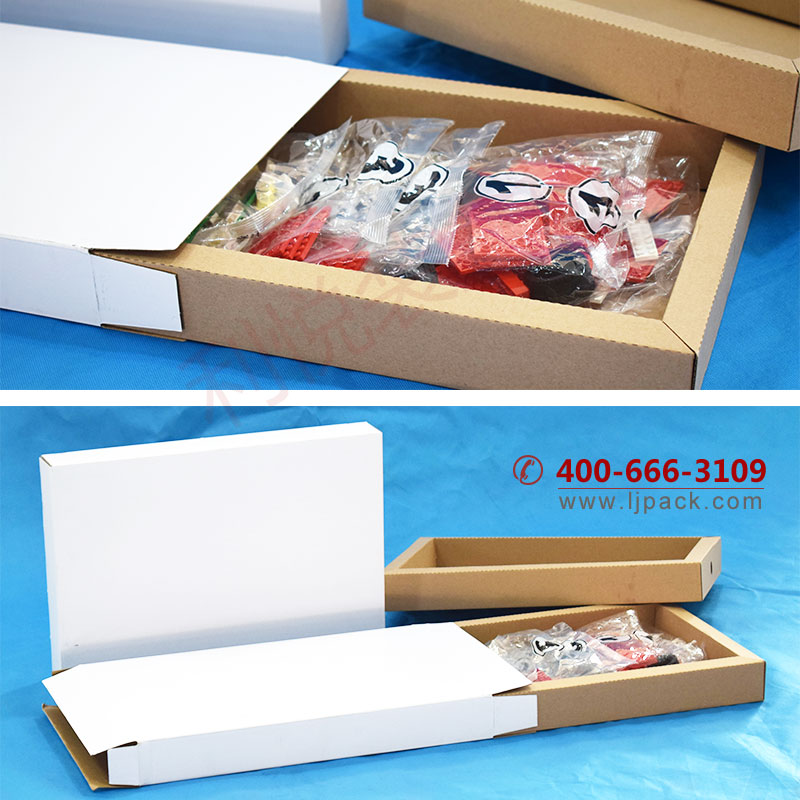

APPLICABLE FIELDS

APPLICABLE FIELDS

The equipment is mainly suitable for products packaged by corrugated paper or kraft paper such as building block toys, hardware, office supplies, etc.

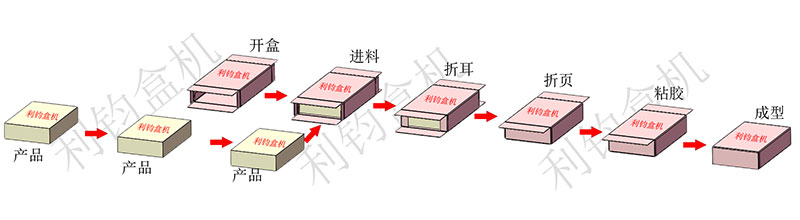

Packaging process

 Packaging process

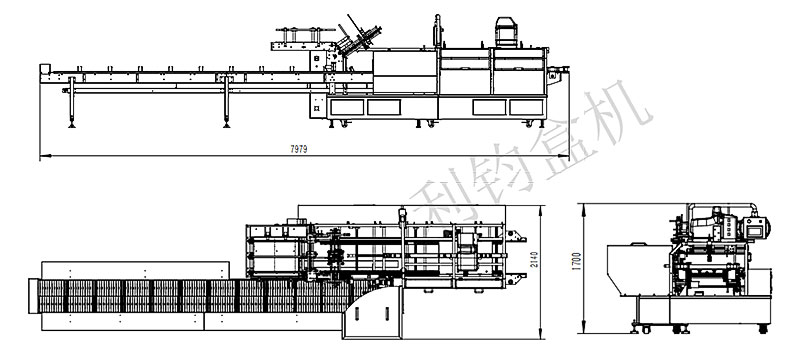

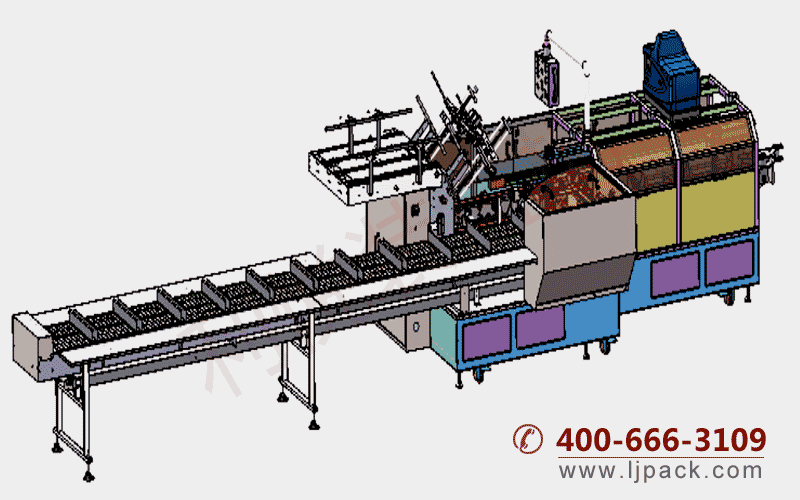

Equipment dimensions

Equipment dimensions

MAIN TECHNICAL PARAMETERS

  • Model: LY500D Insert Box type;
  • Production speed: 10-25 box/min;
  • Suitable for box size: L.150-500+ W.100-420+ H.30-70+ mm;
  • Paper requirements: Corrugated paper or Kraft paper ;
  • Equipment dimensions: L.7979 W.2140 H.1700 mm;
  • Machine weight: ≈1430 KG;
  • Power supply: AC220V 50HZ-60HZ;
  • Total power: 1.5KW;
  • Air consumption: 15-80L/min

FEATURES

The equipment is one of the non-standard machines independently researched and developed by our company. Integrating box opening, boxing, box folding and sealing, it has such features as compact and reasonable design, simple operation and convenient maintenance and servicing.

The functions such as automatic material feeding, automatic tray feeding and leaflet feeding, character code and sequence number printing, waste rejection, etc. can be added at the front and rear ends of the equipment.

Within the specified range of the same equipment, the dial scale can be quickly adjusted to achieve the use of multiple specifications.

The parts that contact the product are made of SUS304 stainless steel.

High degree of automation: PLC programmable control system, man-machine interface displaying cartoning speed, quantity, automatic alarm for lack of cartons, no box opening in case of no product, fault reasons and other parameters.

The driving and friction parts strictly follow the standard, with less wear and less replacement of parts at later periods.

It can be equipped with the hot melt glue machine according to customer requirements. Box sealing can be achieved by hot melt glue spraying or mechanical glue spreading.

The equipment can be used singly or connected with various kinds of machinery and equipment such as the material sorting machine, manipulator, three-dimensional packaging machine, pillow packaging machine, vertical bag packaging machine, assembly machine, automatic filling machine, labeling machine and code printing machine at its front and rear ends for linked production.

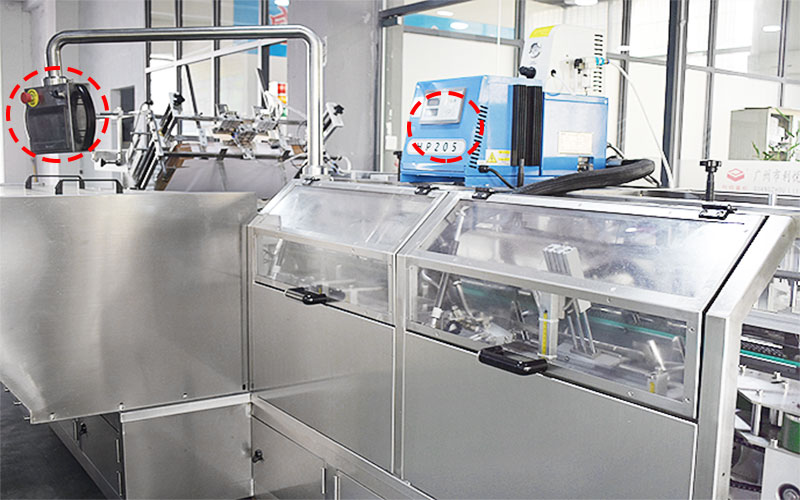

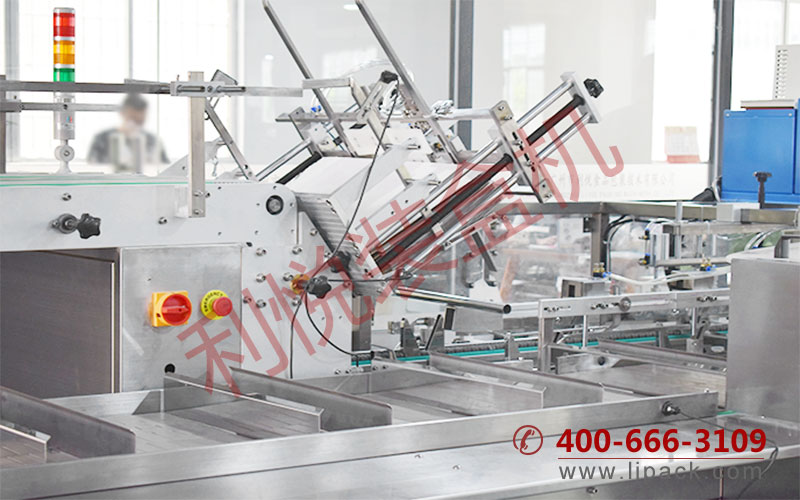

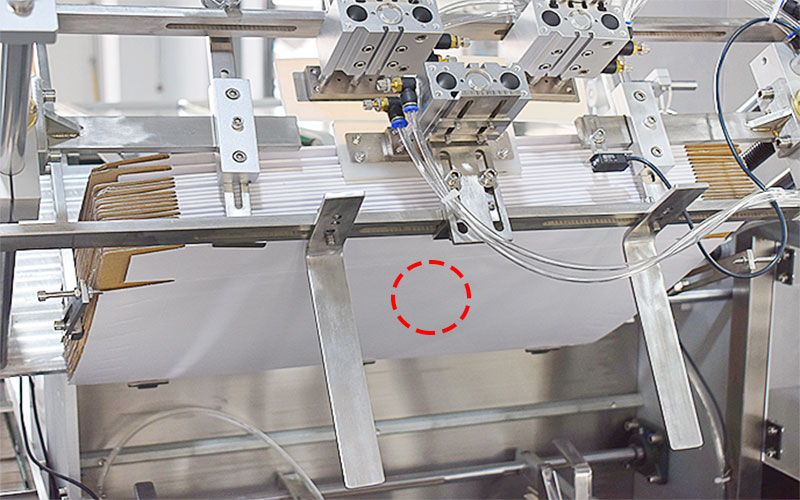

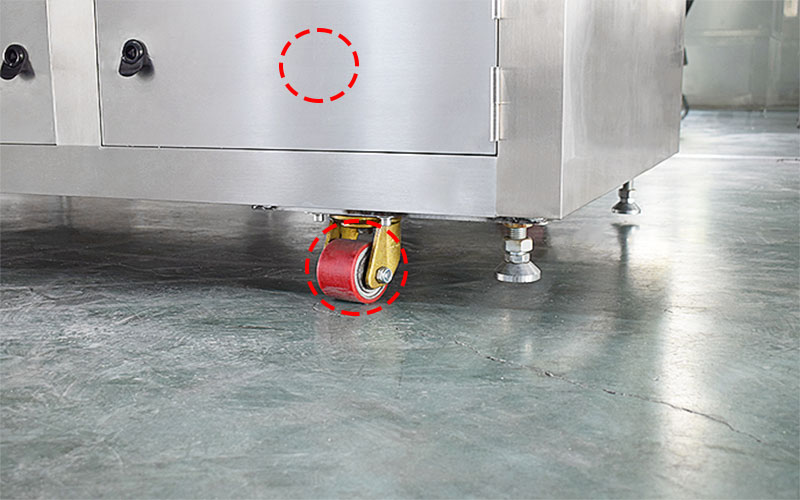

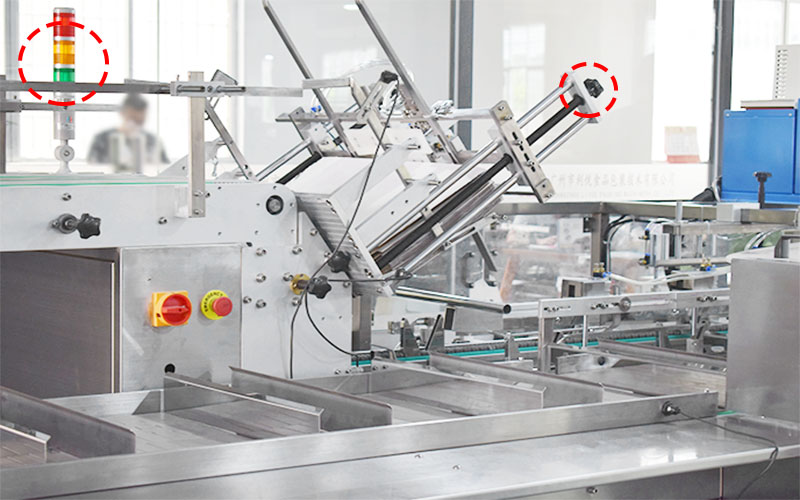

Part of the machine

LY500D CORRUGATED CARTON CARTONING MACHINE

LY500D CORRUGATED CARTON CARTONING MACHINE

LY500D CORRUGATED CARTON CARTONING MACHINE

LY500D CORRUGATED CARTON CARTONING MACHINE
